Red Hat Enterprise Linux as a Horizon View Instant Clone Part 4

-
Welcome to part 4 of deploying Red Had Enterprise Linux as Horizon View Instant Clones.

In this section we will go through creating the Instant Clone pool and login in.
At this point you should have already created the VM in part 1, installed RHEL in part 2, and configured RHEL and installed the agent in part 3. Go ahead and power on the VM and open a console to the VM (I prefer to use VMware workstation , however a browser is just fine)


OK we are in the home stretch, open the Horizon administrator, navigate to desktop and click Add.
Choose 'Automated Desktop Pool' [Next]

Select 'Floating'  [Next]

 Make sure 'Instant Clones' is selected  [Next]


Give the pool a name, again something easily identifiable always helps  [Next]

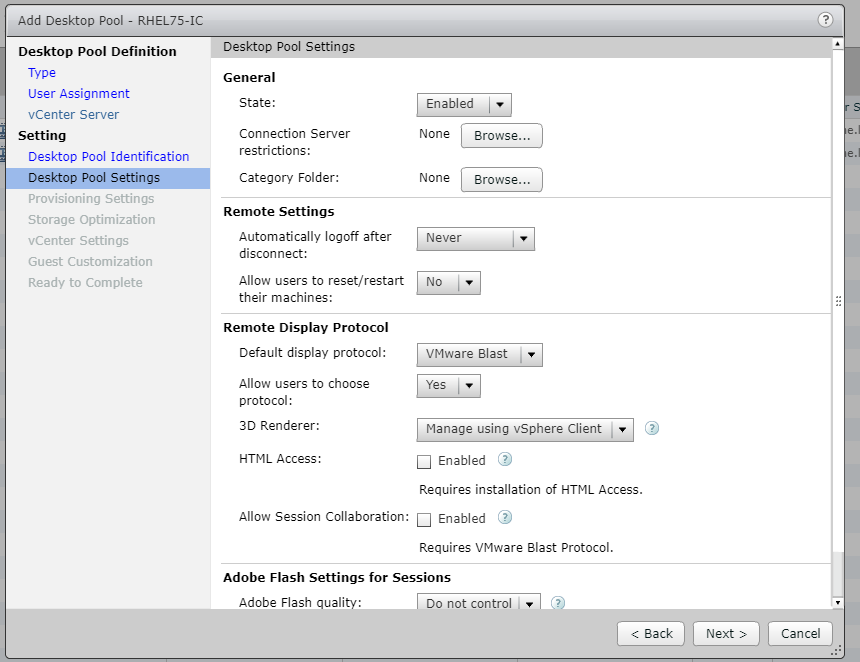

Do not make any changes here  [Next]


Choose a naming pattern
Choose the number of Instant Clones you want
 [Next]


If you are using vSAN configure it here (I am not) [Next]


Choose the parent you created
Choose the last snapshot you created
Select a location for the pool
Select your compute cluster
Select a resource pool if you have one
Select the Datastore(s) you want to deploy the VMs to
Select any network you want to deploy the Instant clones to
 [Next]
 Select the Active Directory OU you want to put the VM into
Check the Allow reuse of pre-existing computer accounts
[Next]
 The last page allows you to select to entitle users, I select this, and click [Finish], then add the group of users to be entitled.


Open up vsphere, and watch the instant clones create!


Once you get to the 'Configure virtual disk digest' you are in good shape

In the View administrator you can see the VM's go into customizing.

Once the VMs are deployed they will show as Available

Now open up the horizon Client, connect to your connection server and select the newly created pool

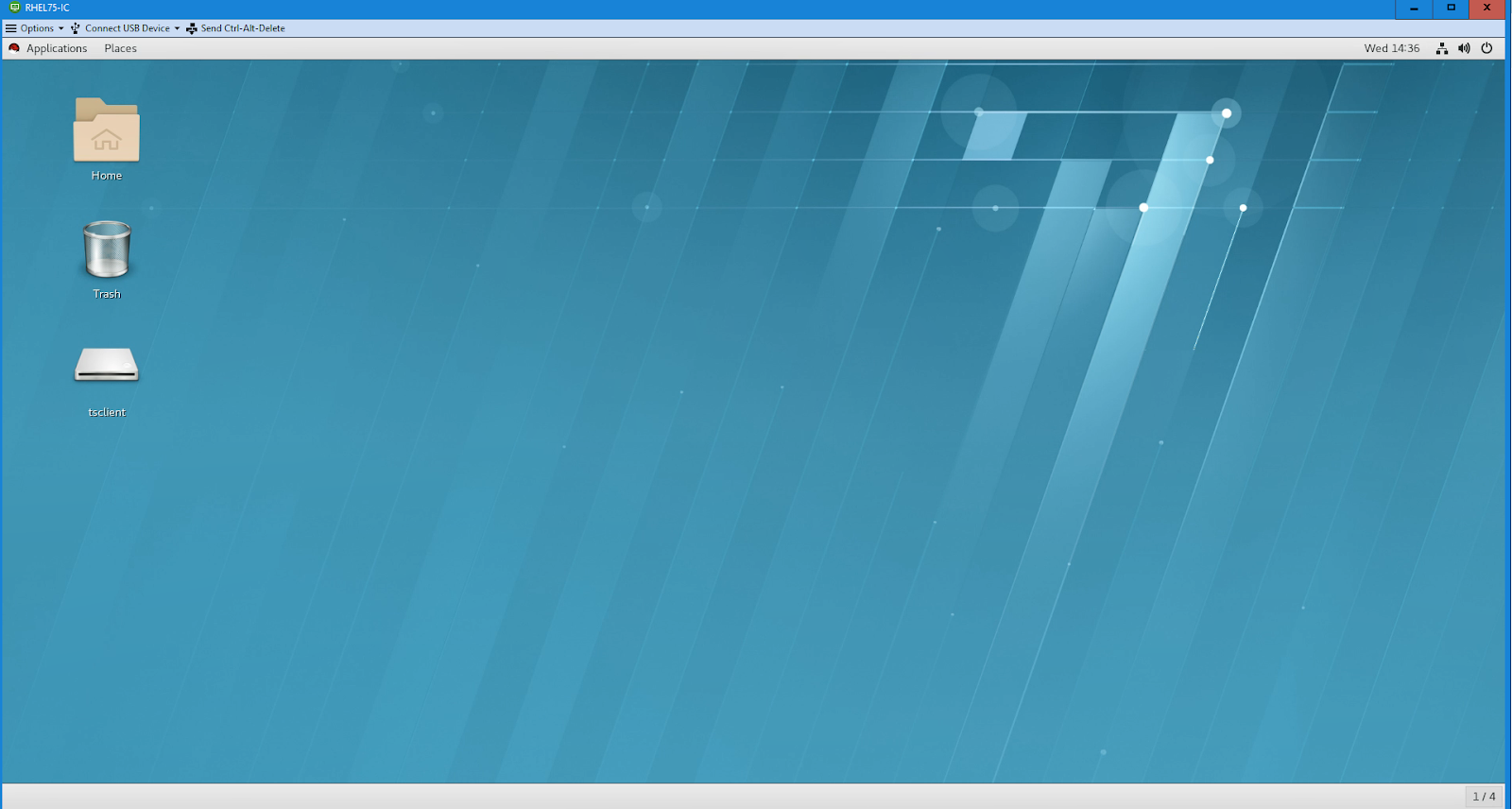

You will be logged in to your new RHEL 7.5 Instant Clone



That is it.

If you have any questions go ahead and post them, and if you need documentation references check the VMware documentation:
https://docs.vmware.com/en/VMware-Horizon-7/7.6/linux-desktops-setup/GUID-E6825232-3188-4507-B757-0CF743047282.html
